Distributed Energy Storage System
Smart, Modular Energy Storage for
Real-World Demands
Solution of Distributed Energy Storage System

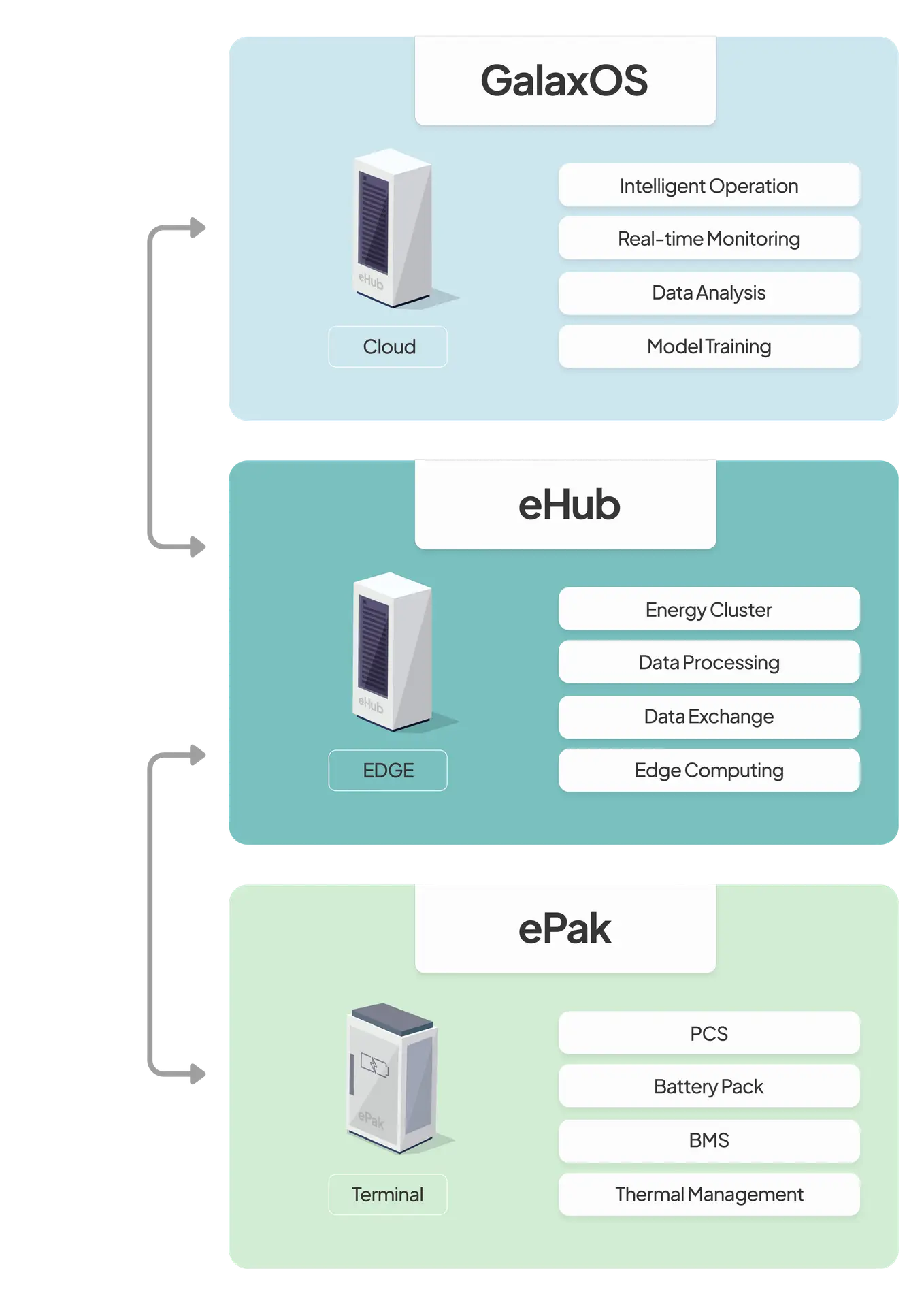

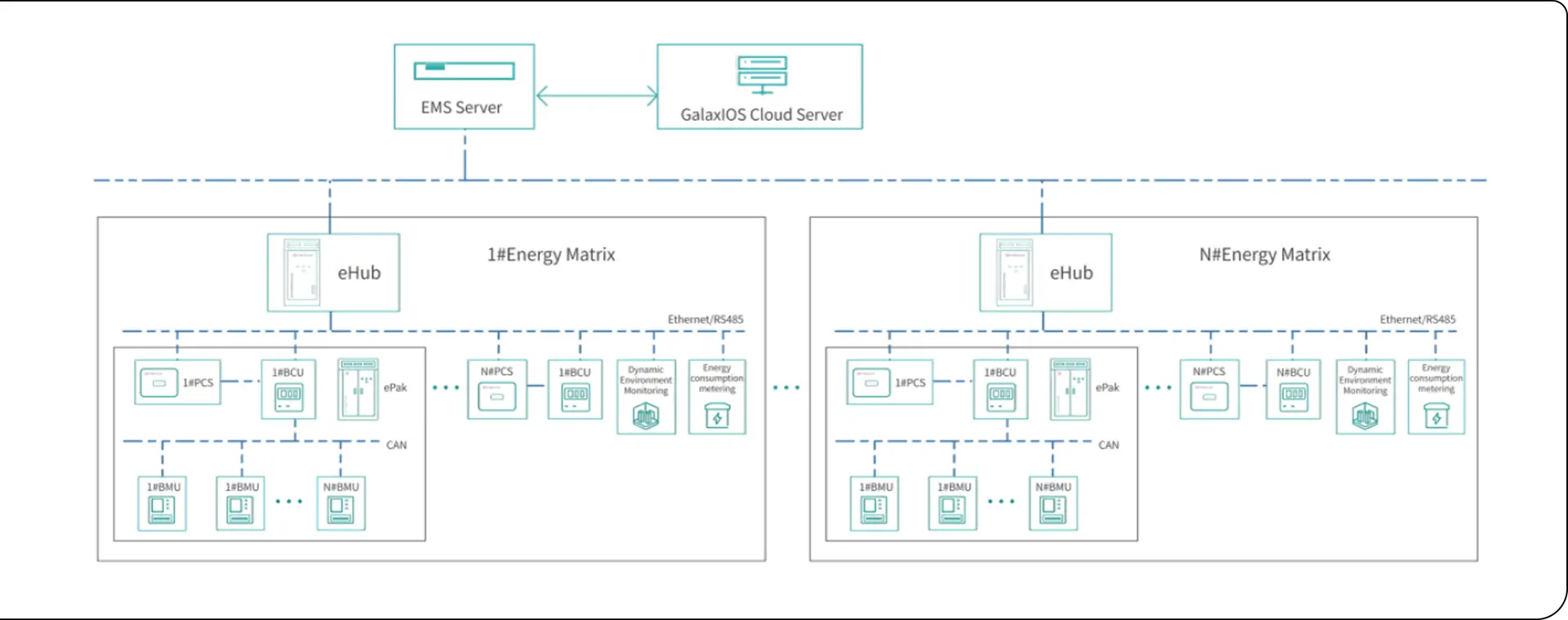

The distributed energy storage system of Pingalax is based on the three-layer architecture of“ cloud, edge and end”, and consists of three parts:digital energy GalaxOS system service, interactive edge eHub and energystorage battery terminal ePak.
Pingalax has the ability to design and develop key energy storagecomponents such as BMS and PCS, develop ePak and eHub energy storageproducts, and design efficient and safe overall energy storage systems.Pingchuang’s distributed energy storage system can be connected to thegrid in two hours as soon as it takes advantage of its flexible layout, andrealizes intelligent management with cloud services, bringing convenient andextreme energy solutions to customers.
Deployed Where Energy Needs
Stability and Scale

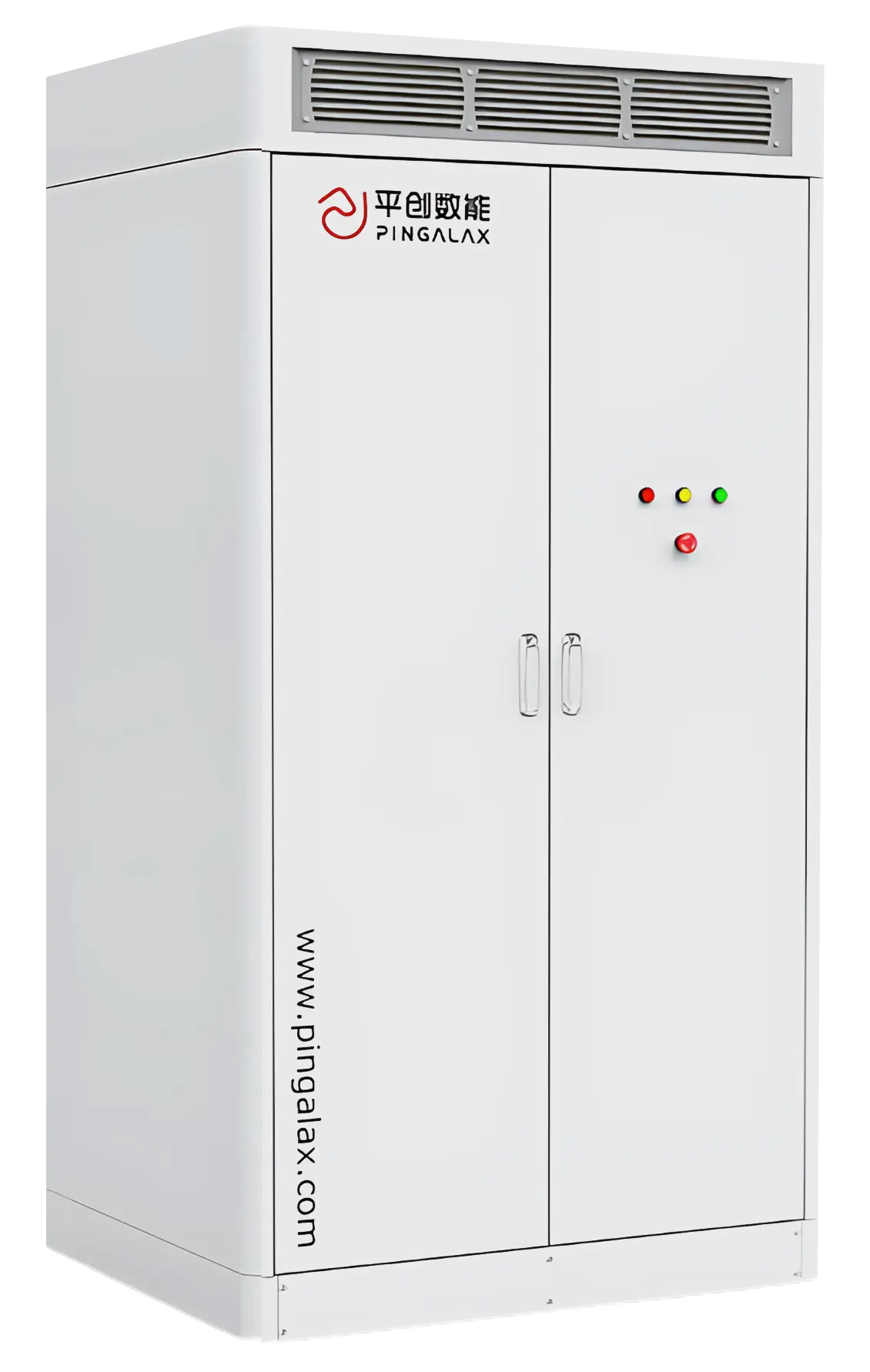

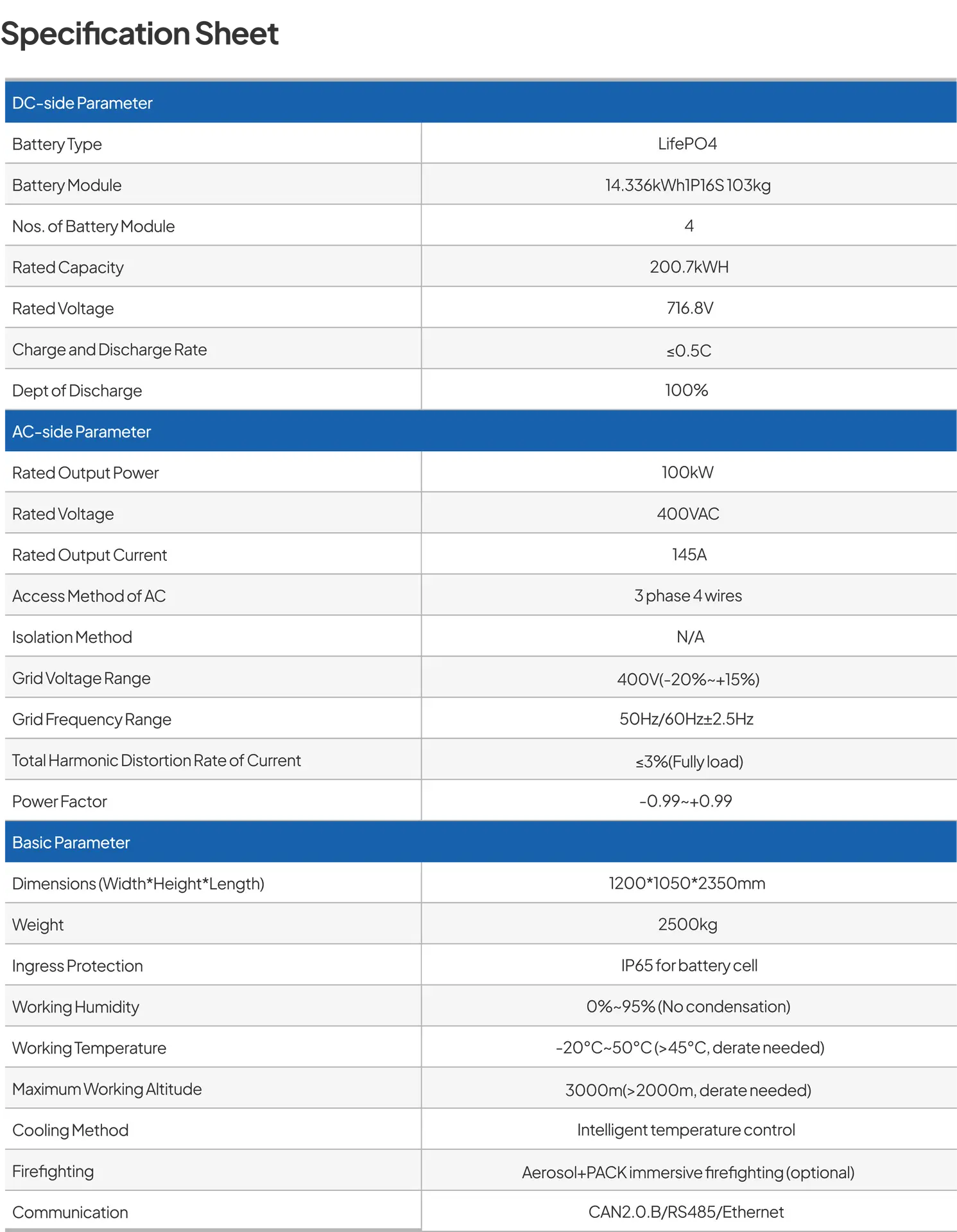

ePak Energy Terminal
(100kW/200kWh)
Safe & Reliable
Efficient heat management design, hierarchical linkage protection PACK level immersive firefighting
Easy to Install
Modular design, easy to use IP65 ingress protection, meet a variety of application environment
Flexible Configuration
Support up to 12 units in parallel Cover a power range of 100kW-1200kW Various configuration schemes
Economical & Efficient
Battery string design, zero capacity loss Efficient three-level topology, intelligent temperature control and air duct design, system conversion efficiency > 90%

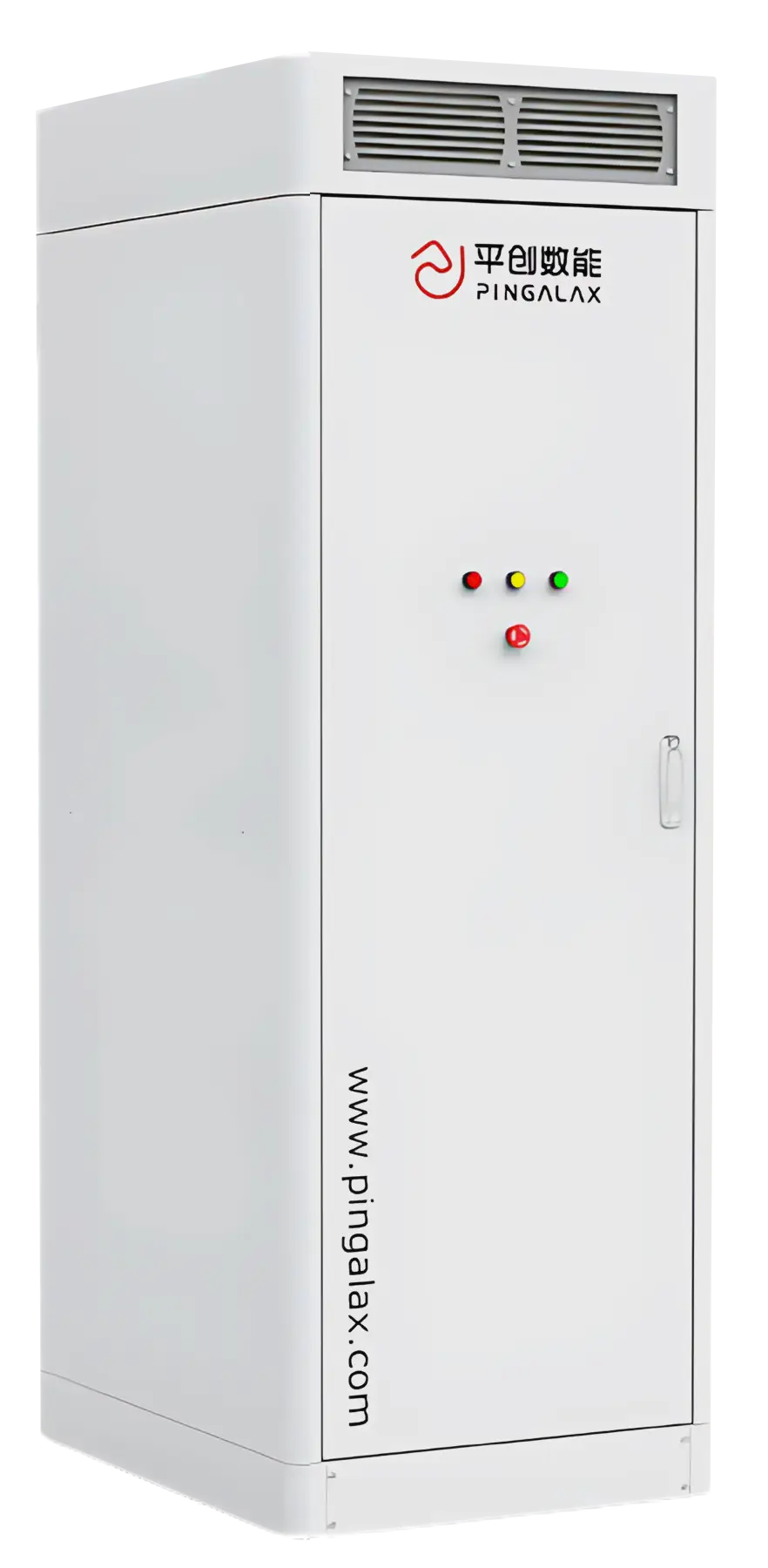

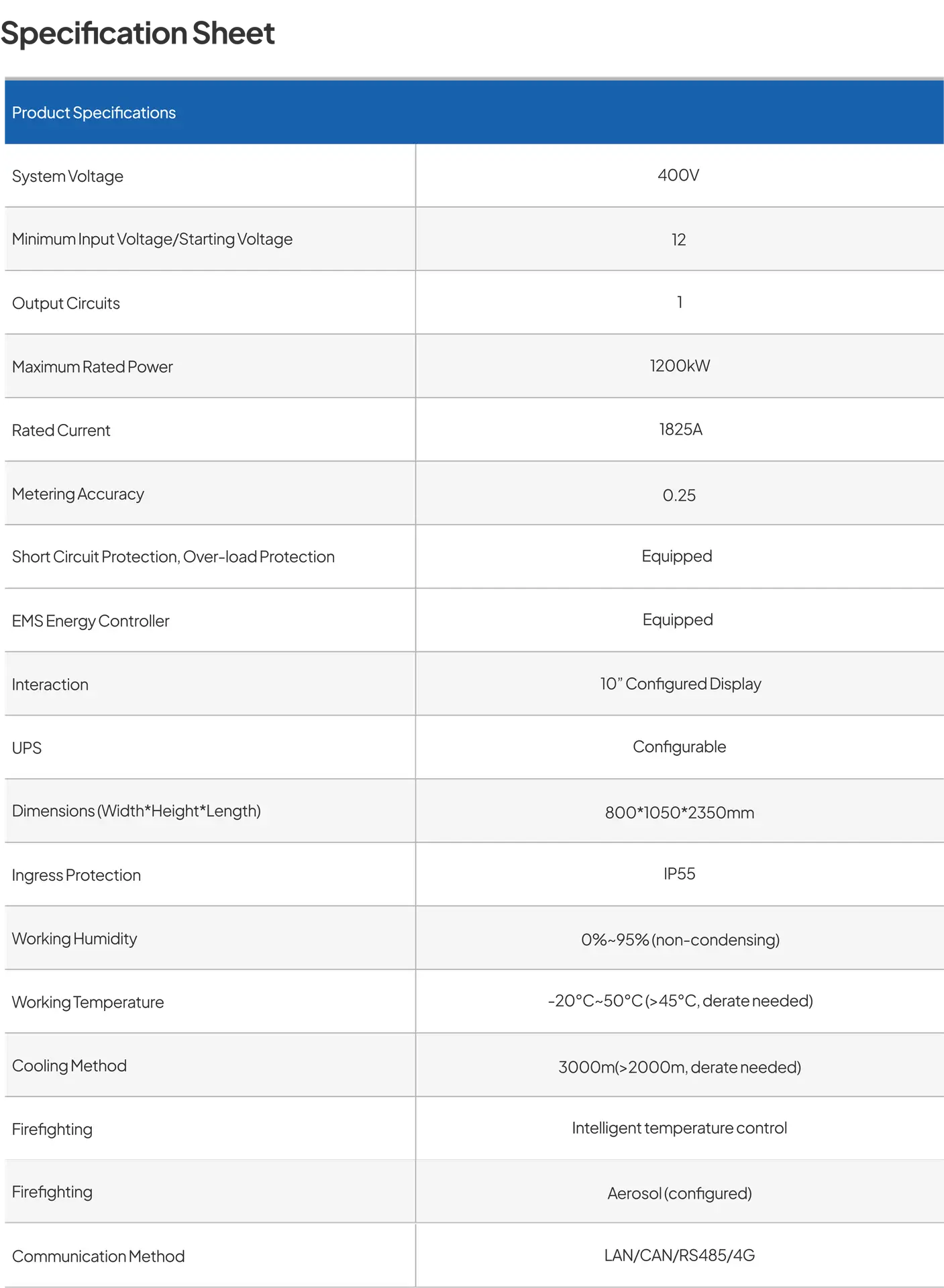

eHub Convergence Terminal
(100kW ~ 1.2MW)
Highly Integrated
Intelligent power distribution system to combine energy flows Support access of a maximum of 12 battery cabinets for fast coordinated control of MWh power stations
Easy to Install
Modular design, easy to use IP55 protection level, to meet a variety of use environment
Flexible Configuration
EMS equipped, multiple operating modes optional, increasing project revenue. Remote operation and maintenance monitoring is realized with the cloud technology

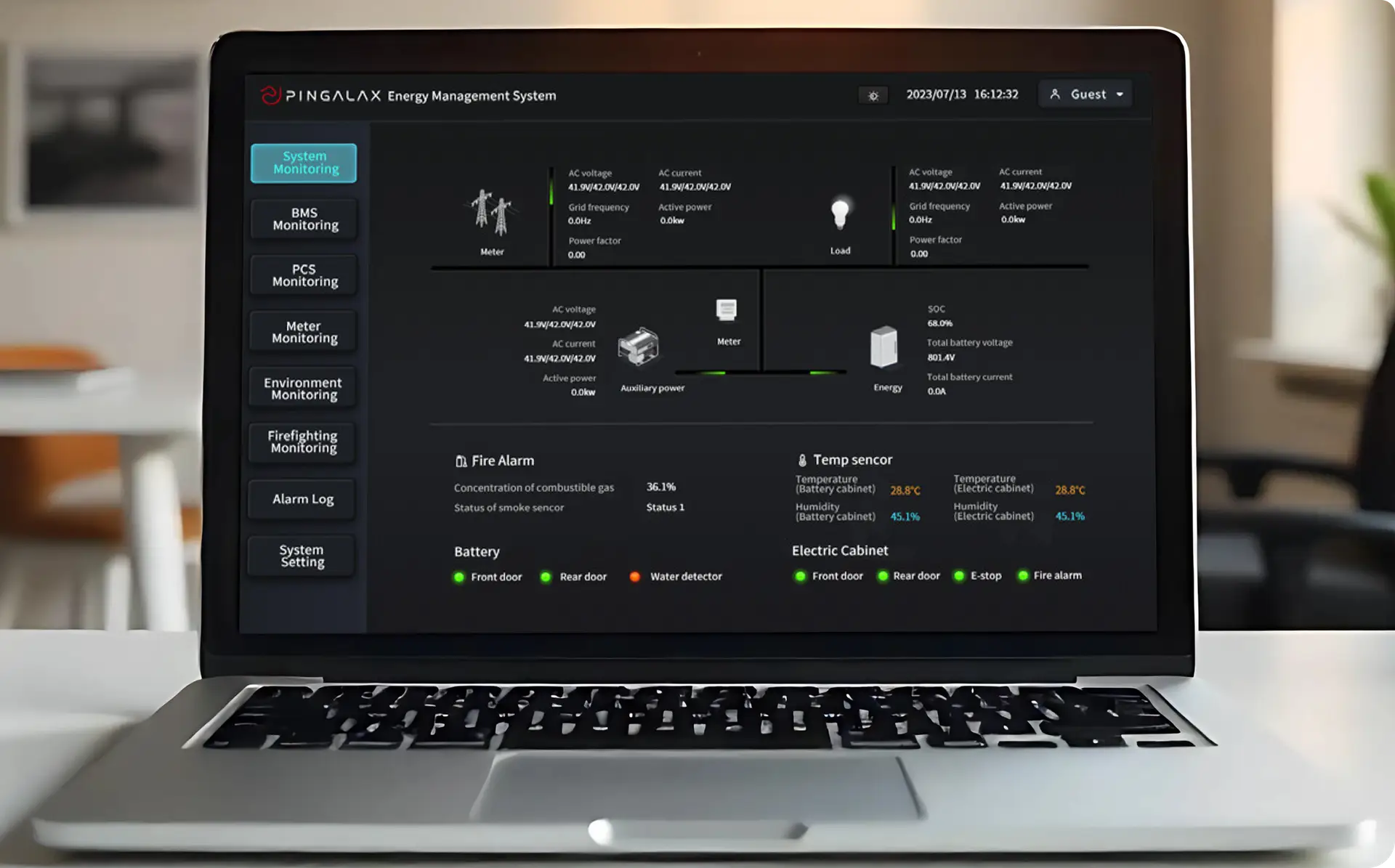

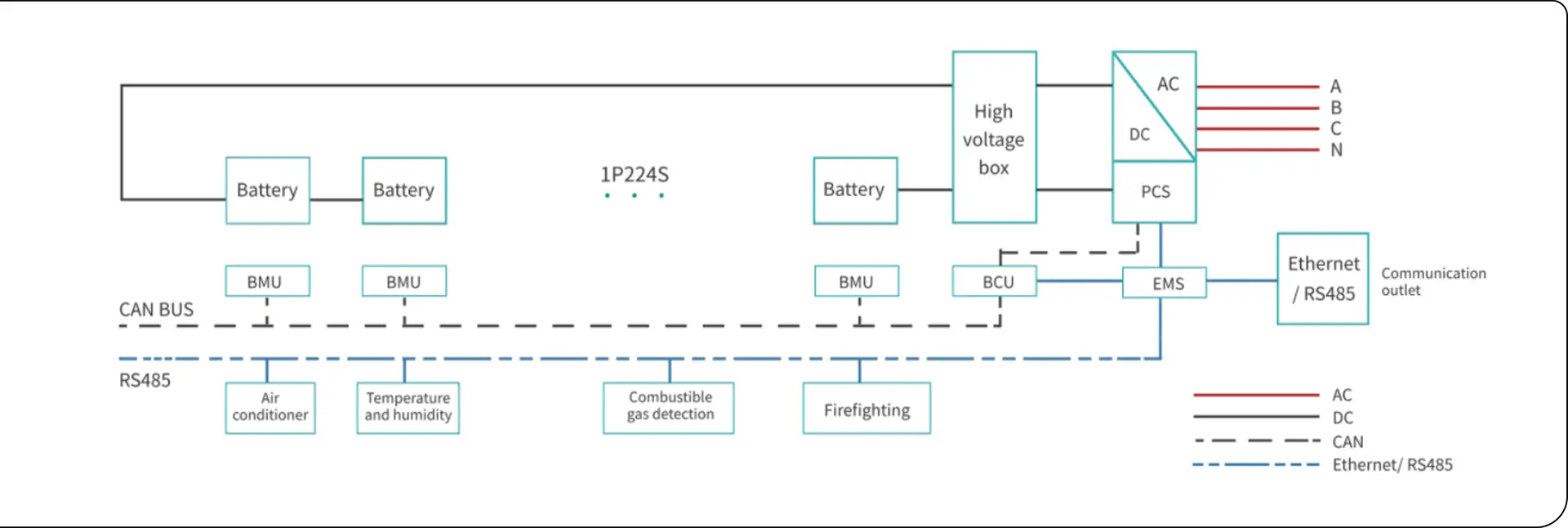

Edge Energy Management System
The EMS in the eHub provides the entire energy storage system with data collection, data storage, and local collaborative control.

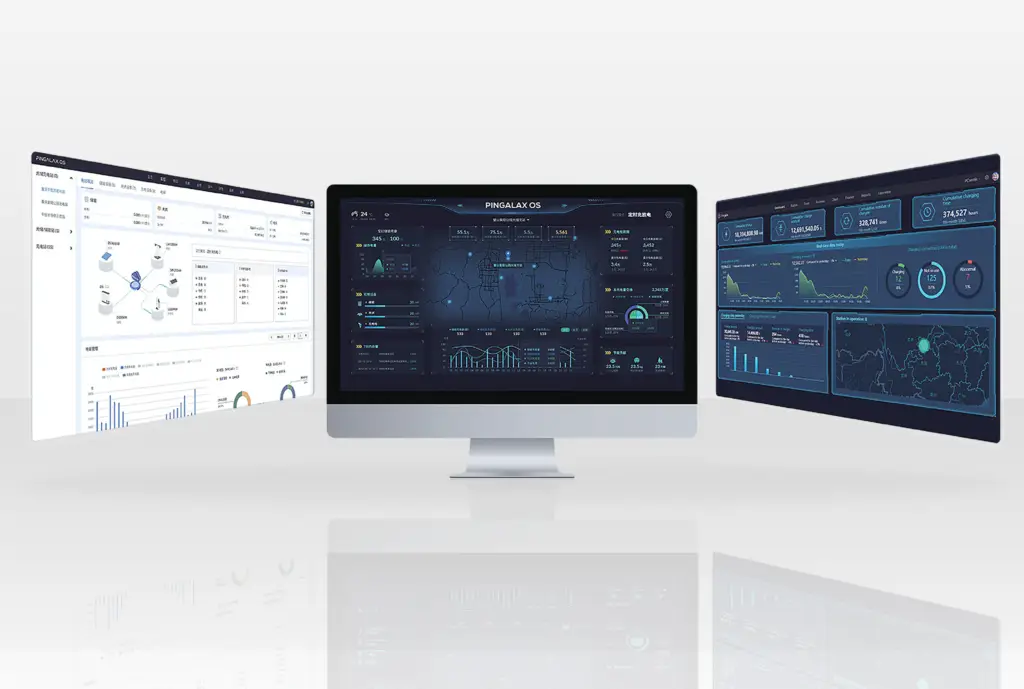

GalaxOS
Integrated Management System for
Photovoltaic, Energy Storage and Charging

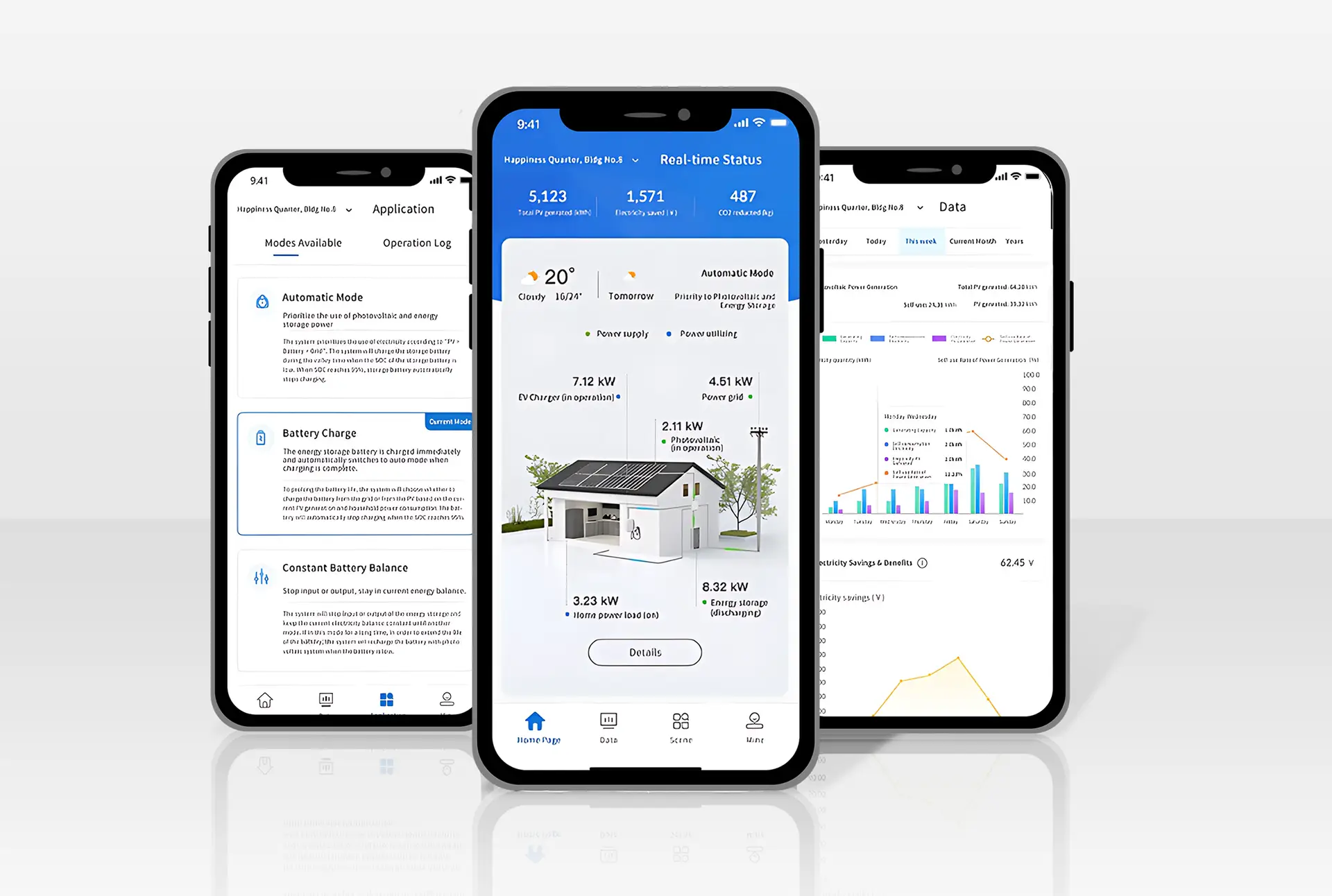

GalaxOS is a self-developed energy management platform that integrates photovoltaic, energy storage and charging. The platform is built around four core business units: Charging Transaction Center, Energy Management Center, Equipment Lifecycle Management System and Risk Control Center, and is flexible to deploy.
Intelligent Operations and Maintenance
- Remote management of equipment and power plants
- Developing the operating strategy
- OTA upgrade
- Real-time monitoring
Real-time Monitoring
- Dimensional visualization display
- Operational data/process data/financial statement
Data Analysis
- Full equipment lifecycle management and anomaly data analysis
- Correlation analysis between power generation and energy storage data and energy consumption analysis
- Charging data analysis, thermal runaway warning, and abnormal battery cell identification
AI Empower
- Charging and discharging model, and training and analysis of the battery safety failure model
- Distribution of intelligent energy
The platform uses a combination of the MQTT protocol and a time-series database, which not only guarantees the transmission and continuity of messages, but is also very efficient at writing and reading time-series data, thus ensuring the traceability of process data.

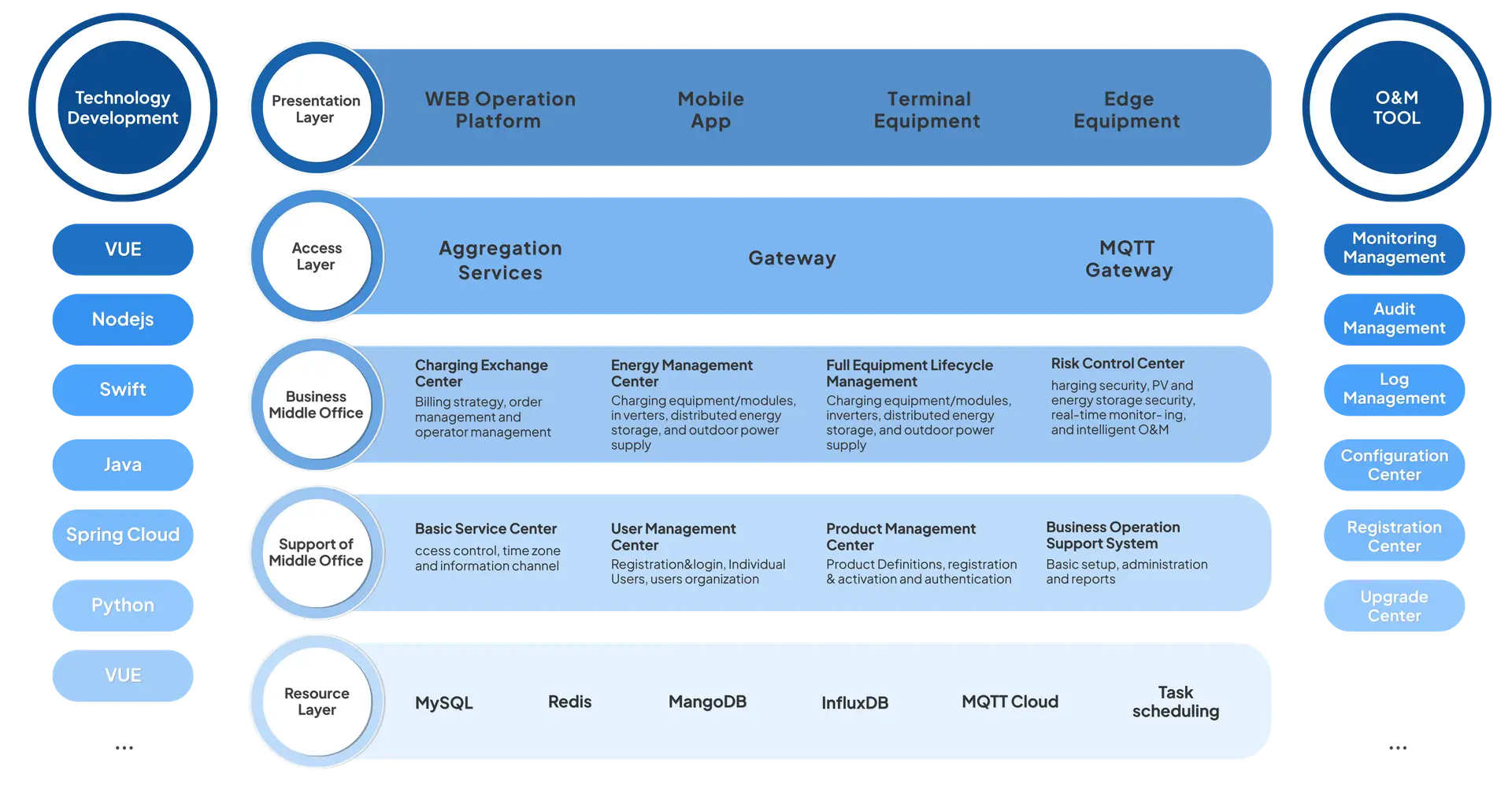

Digital Energy Cloud Platform Technical Map
