Prime Series

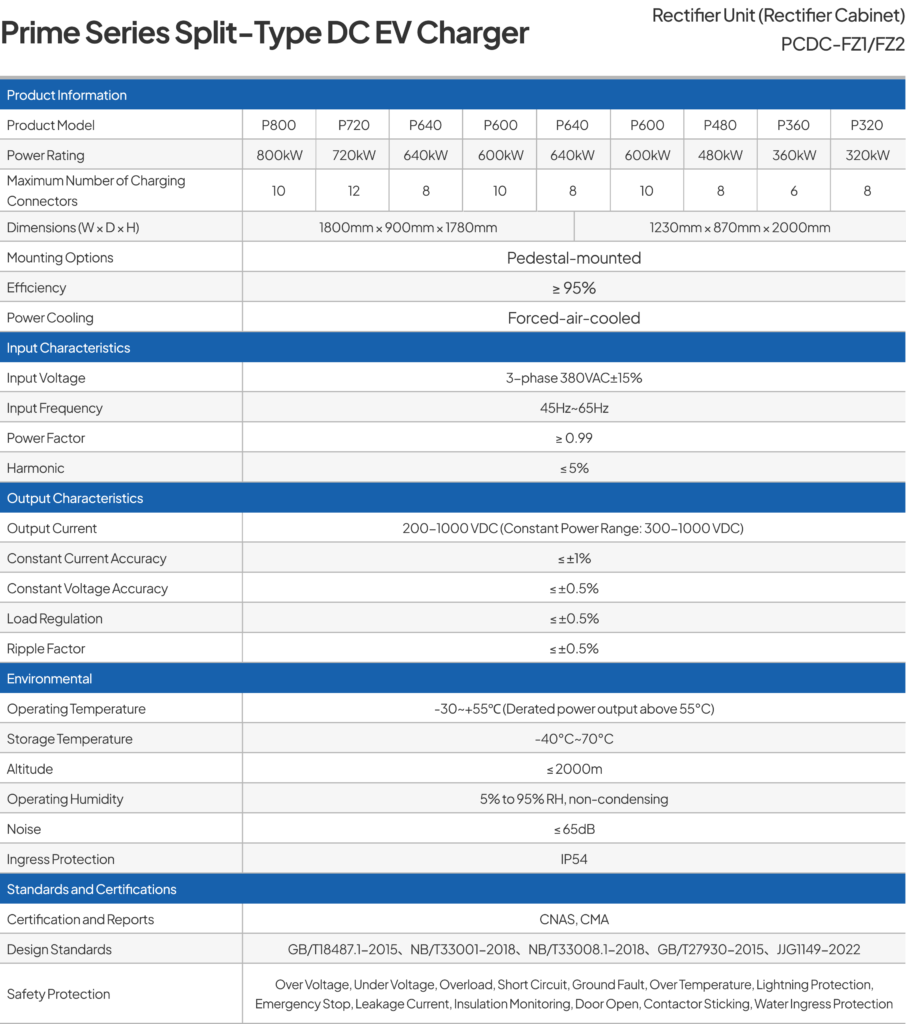

320-800kW Ultra-fast Charging Solution
Ultra-fast DC charging solution built for high-traffic locations and energy-intensive operations. With configurable power outputs from 320kW to 800kW, the Prime Series supports dynamic power distribution across up to 12 charging points. Its split-system architecture improves heat dissipation, reduces noise, and simplifies maintenance—ideal for highway hubs, transit depots, and large-scale EV fleets.
Aesthetics Meets Functionality
Split-System Design
Up to 100m between the power cabinet and the dispensers which allows for flexible set-up, lower noise, easier maintenance and better heat dissipation.
Intuitive Interface Experience
The high-definition touch screen dynamically displays information such as charging methods, electricity price, and charging status, enhancing user's experience.

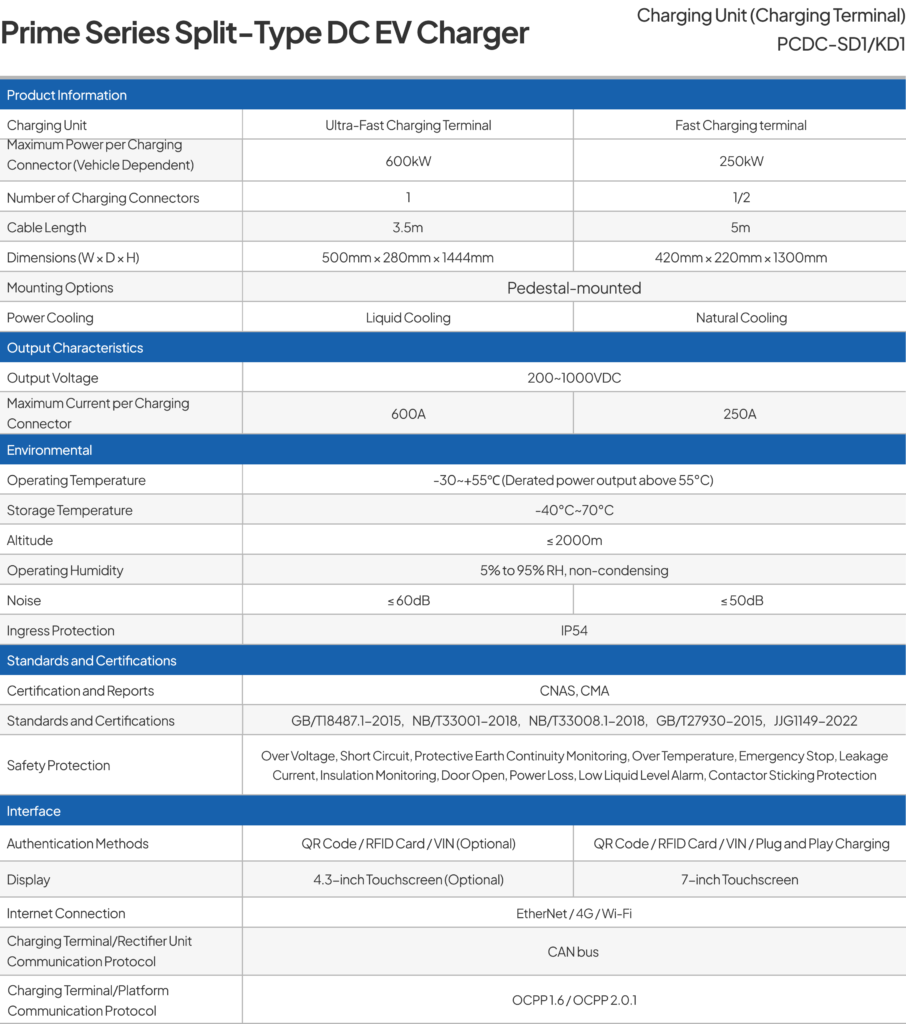

Multiple Dispensers Options

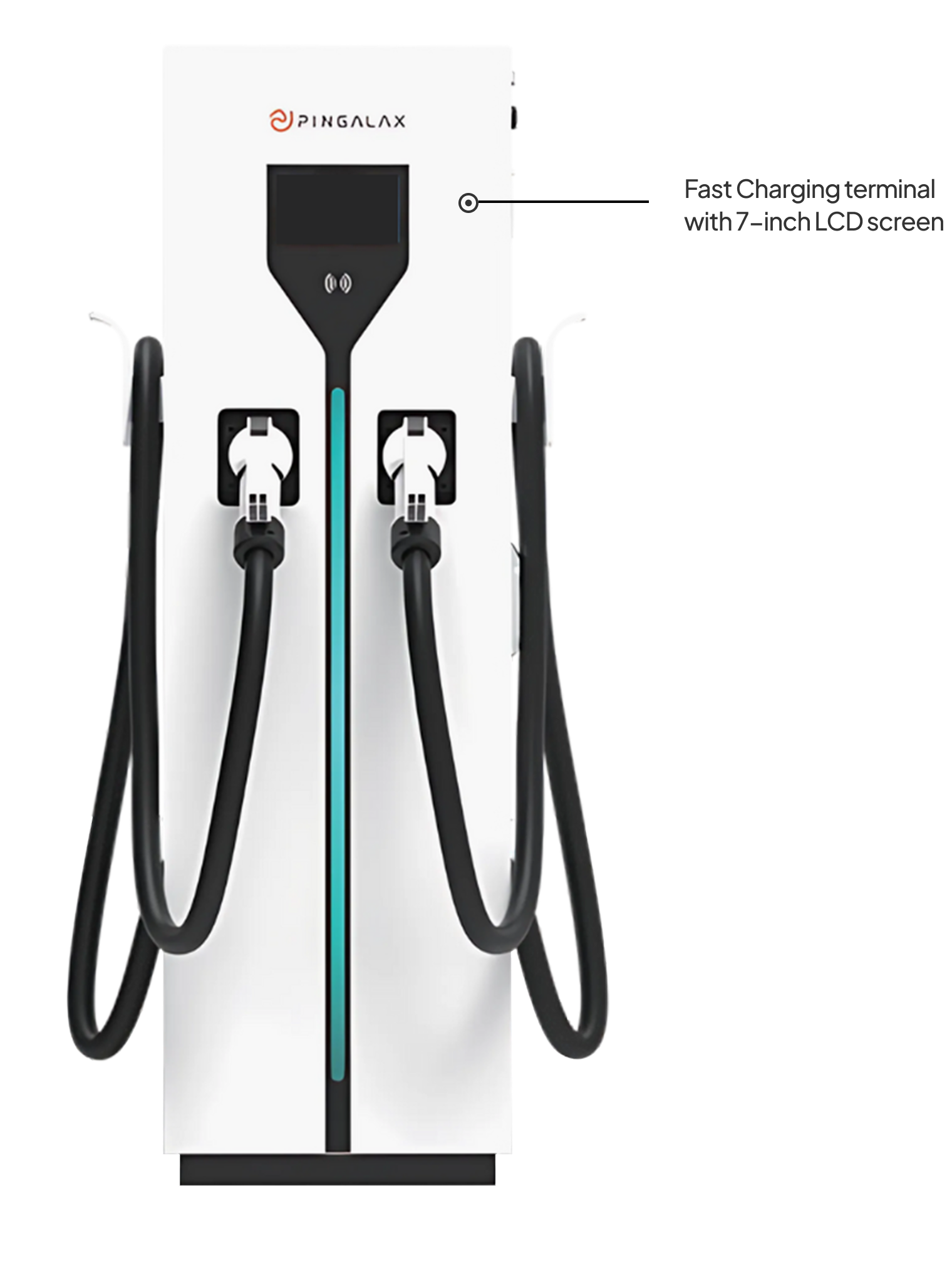

Up to 12 Fast or Ultra-fast charging terminals can be supplied with just one power cabinet. With dedicated APP, you can find charger with one click, check electricity prices, charging data,etc.

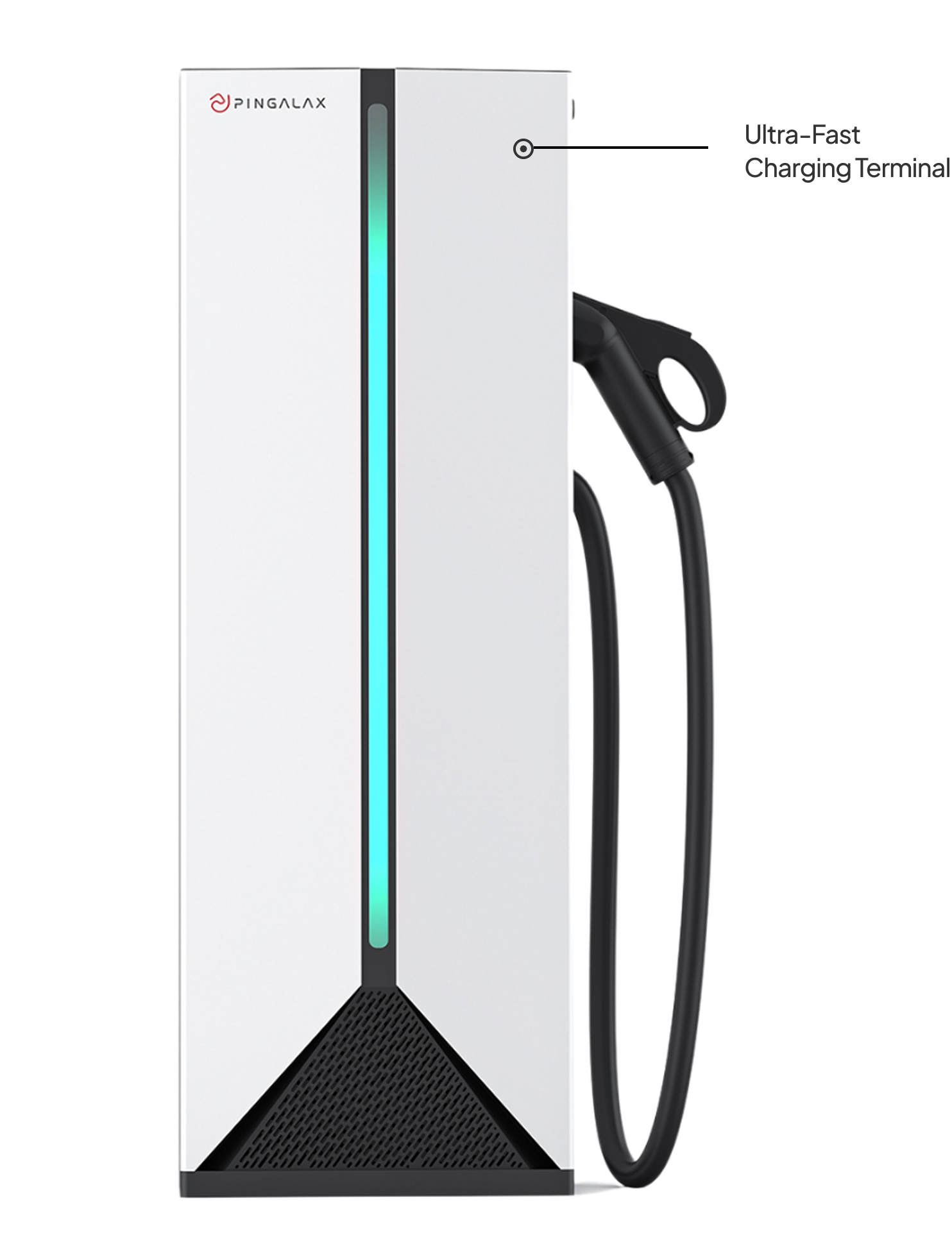

Geometric-cut Design
London Design Awards prize winner. Platinum Award of American Good Design Triangular-cut shape at the bottom with vertical LED light bar displaying charging status creats a strong visual impact.
Reliability & Efficiency Oriented
Smart Charging Control Algorithm
Digital current sharing and fast startup ensure efficient operation.
Smart DLB Feature
Provide dynamic load management, reducing energy costs and preventing nuisance tripping of distribution protective devices.
Optimal Performance and Efficiency
In-house power module significantly improves charging efficiency. Charge up to 12 vehicles simultaneously.
Multi-layered Safety Mechanism
Built-in protection mechanisms, including 8-layer safety protection, automatic power-off when fully charged, one-button emergency stop, etc., can assist stations and users to promptly detect and handle abnormal situations during charging, ensuring safe charging process.
Strict Quality Control
Strict release tests on all products, including salt spray test, electrical performance test, waterproof test, dustproof test, power off and plug test, radiation interference test, etc., to ensure the quality of chargers from the source.
OTA Upgrading
Cloud-based operations & management enables remote OTA upgrades, with lower operation and maintenance costs.
Multi-standard Adaptation, Intelligent and Comprehensive
Ultra-wide Voltage Range
Featuring 200–1000-V charging voltage range to support the existing and next-generation EVs.
Steamlined Data Transfer
OCPP 1.6, OCPP 2.0.1 and more
Powerful Cloud Operating & Management
Tailored Service for OEM&ODM
Full-stack R&D enables tailored appearance, functions and solutions
Technology Behind
Smart Life’s Technology Behind Mondrian Series; Built on Pingalax’s advanced semiconductor and energy management innovations, Mondrian ensures stable performance, multi-layer safety, and intelligent energy optimization, giving operators full control over their charging network.
Charging Module
High-reliability power module with wide voltage range and stable DC output—designed for integration into scalable EV charging systems.
EI Charge
A smart charging platform built to support both station operators and EV drivers. It integrates system-level management and real-time user interaction for public and private charging environments.
